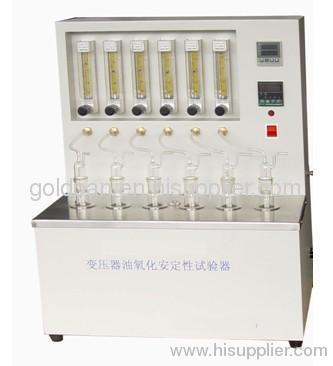

GD-0206 Transformer Oil Oxidation Stability Test Apparatus is designed and made as per the Industry Standard of People's Republic of China SH/T 0206 "Test Methods for Oxidation Stability of Transformer Oil". It is suitable to determine the oxidation stability of transformer oil.

I. Main technical characteristics

1. The instrument is desktop type. It is compact. The specification and size of the instrument are in accord with the requirements of SH/T0206.

2. The heating device adopts a metal bath, so it can heat uniformly and keep the temperature constant.

3. It is equipped with a pressure reducer of new type, so it can ensure the output pressure of the gas cylinder keeps constant when the gas pressure in the gas cylinder is decreasing.

4. It has 6 test wells. It can make test for 1 sample or for 6 samples at the same time. it is convenient.

5. It has 6 flow meters to adjust and indicate the flow rate in 6 oxidation tubes.

6. It has a digital timer for presetting and recording test time.

II. Main technical specification and parameters

1. Power supply: AC220V 50 Hz; Power consumption: ≤1100W;

2. Temperature controlling mode: automatically controlled by a digital temperature controller;

3. Temperature controlling range: room temperature~160°C;

4. Temperature controlling accuracy: ±0.2°C;

5. Temperature measurement device: thermal resistance;

6. Sample quantity: 6 pieces; it can make test for 6 samples at the same time
